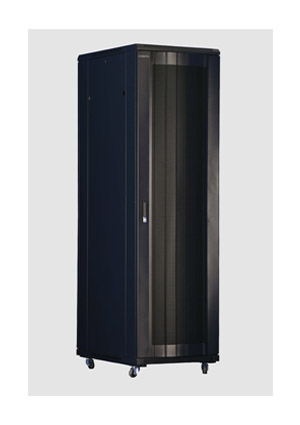

Cheetah new Server racks series addition: Cheetah Super server Rack.

The IT function is becoming more and more important in every  organizations all over the world. So it is very important to keep the servers and other IT hardware in a Organized, consolidated and secure manner.

 Server cabinets like CHEETAH  “SUPER SERVER RACK’'  provide physical security and prevents unauthorized access to critical IT equipment.
Cheetah Super Server racks make workplace a safe environment for you and your hardware.



Super Server Cabinets like CHEETAH ''Extra Deep" Super Server Cabinets Provide Physical Security and prevent unauthorized access to the critical IT equipment .
Cheetah Super Server Cabinets Significantly improve space utilization and cable management. It helps mission critical hardwre secure, organized & protects servers & equipment from tampering.

Why Cheetah Super Server Racks??

Extra-Depth-1000mm deep.
Multiple vendor equipment compatibility
High-density vented front and rear metal door enable excellent heat dissipation.

All the doors with lock for protection.
Strong frame and rigid structure
Lockable side panels. Quick removable for easy access
Double Section Rear door.
Degree of protection IP20
Vertical cable channels .
Comprehensive range of accessories
Wide range of accessories.
Comes in built with preconfigured mostly required accessories which is very cost effective.
Individually marked U heights .

Labeled U markings on mounting rails make for easy product installation
Quality Assurance
Static Load capacity 800-1000kg.
Cable entry from top and bottom.
Comes in flat pack, reducing shipping and storage cost and easy to assemble.
Generous Spacing For Vertical Cable Management Area
Solid bottom panel with cable entry and cable fixtures
Baying / Coupling capability
Heavy Duty Castors+Levelling feet.
Quick and very easy assembling which saves lots of time.
Secure, fast & convenient ordering system

Feature:

Exquisite design with precise dimension and craftsmanship ;

Front perforated Single door and rear perforated single or double door option;
Adjustable feet and heavy duty castors are available simultaneously ; Cable entry on the top cover and bottom panel with adjustable sizes ; Optional installation of plinth to enable cabinets fixation, under-base cable entry/ventilation;

Efficient and reliable cabinet connection by baying kit ; Removable side panels to ease maintain ;
Around 1/3 assembled original volume when flat pack.

Material:

SPCC cold rolled steel ;

Thickness:

mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm

Surface finish:

Degreasing, pickling, phosphoric, powder coated

Degree of Protection:

IP20

Loading capacity:

Static loading: 800KG


Ordering information :

AP801042UB-SS           19" Rack height 42U width 800 mm and depth 1000mm.
FLAT PACK                   19" Rack height 42U width 800 mm and depth 1000mm.It includes front and Rear Metal perforated door with keys and lock, two side metal door with quick release locking fastener, three fixed shelves, 4 way fan with tray,two pair of vertical mount panel, 40 screw and nuts, 4 heavy duty lockable castors along with the feet, Maximum static load is 800 kgs.
( 1 Pair vertical Cable Manger free with it)
KG                                Unit/Weight                  175
CBM                             Unit/Volume                 0.7275
